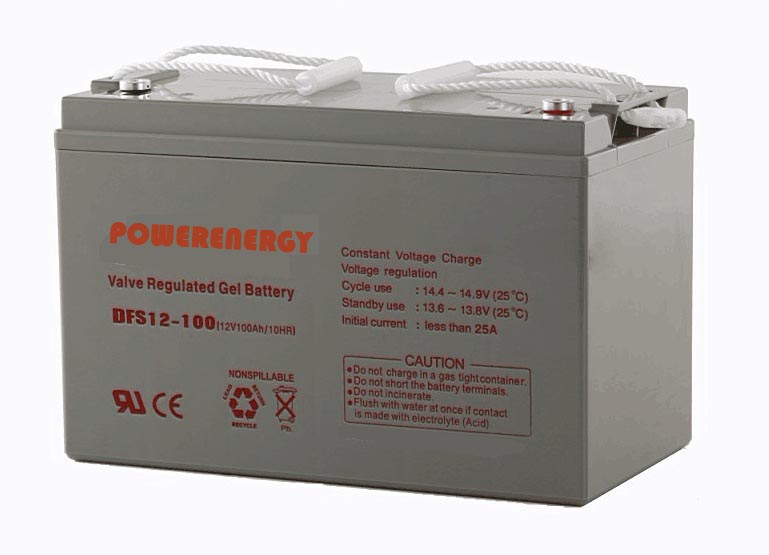

Gel Series

Gel series batteries are designed to meet the requirements of frequent cyclic and high temperature applications such as broadband, PVs etc through up-to-date gel technologies. The Stand Power Gel batteries uses German origin high purity fumed silica to form sulfuric acid thixotropic Gel and fills to the batteries with vacuum to ensure the fully penetration of electrolyte through separators and plates pastes.

Code	Nominal Voltage (V)	Capacity (AH)	Dimension								Weight		Terminal		PDF
			Length		Width		Height		Total Height		Kg	Lb	Type	Posi- tion
			mm	in	mm	in	mm	in	mm	in
GEL2-50	2	50	161	6.34	50	1.97	166	6.54	166	6.54	3	6.62	T17	A
GEL2-100	2	100	171	6.73	72	2.84	205	8.07	210	8.27	5.6	12.35	T17	A
GEL2-150	2	150	172	6.77	102	4.02	205	8.07	227	8.94	8.4	18.52	T11	A
GEL2-200	2	200	172	6.77	111	4.37	330	13	365	14.37	14.3	31.53	T19	G
GEL Plus2-300	2	300	123	4.84	184.5	7.26	360.5	14.19	372	14.65	19.4	42.78	T19	G
GEL Plus2-400	2	400	166	6.54	184.5	7.26	360.5	14.19	372	14.65	26.5	58.43	T19	G
GEL Plus2-500	2	500	194.5	7.66	184.5	7.26	360.5	14.19	372	14.65	31.3	69.02	T19	G
GEL Plus2-600	2	600	223	8.78	184.5	7.26	360.5	14.19	372	14.65	37.5	82.69	T19	H
GEL Plus2-800	2	800	154	6.06	229	9.02	555	21.85	566	22.28	52.7	116.2	T19	H
GEL Plus2-1000	2	1000	186	7.32	229	9.02	555	21.85	566	22.28	62.8	138.47	T19	H
GEL Plus2-1500	2	1500	265.5	10.45	229	9.02	555	21.85	566	22.28	93.2	205.51	T19	I
GEL Plus2-2000	2	2000	349	13.74	233	9.17	555	21.85	566	22.28	122	269.01	T19	I
GEL6-100	6	100	194	7.64	170	6.69	207	8.15	210	8.27	16	35.28	T19	A
GEL6-160	6	160	260	10.24	180	7.09	247	9.72	251	9.88	24	52.92	T19	A
GEL6-180	6	180	306	12.05	168	6.61	222	8.74	226	8.9	28	61.74	T19	A
GEL6-200	6	200	323	12.72	178	7.01	224	8.82	228	8.98	31	68.35	T19	A
GEL12-7	12	7	151	5.94	65	2.56	95	3.74	101	3.98	2.55	5.62	F1,F2	F
GEL12-12	12	12	151	5.94	98	3.86	95	3.74	101	3.98	4	8.82	F2	F
GEL12-17	12	17	181	7.13	76	2.99	167	6.57	167	6.57	5.7	12.57	T5	D
GEL12-24	12	24	175	6.89	166	6.54	125	4.92	125	4.92	8.4	18.52	T5	D

Code	Nominal Voltage (V)	Capacity (AH)	Dimension								Weight		Terminal		PDF
			Length		Width		Height		Total Height		Kg	Lb	Type	Posi- tion
			mm	in	mm	in	mm	in	mm	in
GEL12-30	12	30	195	7.68	130	5.12	159	6.26	183	7.2	10.5	23.15	T7	D
GEL12-38	12	38	197	7.76	165	6.50	170	6.69	170	6.69	13.2	29.11	T17	D
GEL12-55	12	55	230	9.04	138	5.44	209	8.23	213	8.39	17.3	38.15	T17	C
GEL12-65	12	65	350	13.78	166	6.54	176	6.93	176	6.93	21.6	47.63	T10	C
GEL12-75	12	75	258	10.16	168	6.62	208	8.19	212	8.35	24	52.8	T18	C
GEL12-100	12	100	330	12.99	172	6.77	215	8.46	221	8.7	31.5	69.46	T19	C
GEL12-120	12	120	406	15.98	174	6.85	208	8.19	233	9.17	37	81.58	T12	C
GEL12-150	12	150	485	19.09	172	6.77	240	9.45	240	9.45	46	101.4	T11	C
GEL12-200	12	200	525	20.67	243	9.57	220	8.66	245	9.65	63	138.9	T14	E
GEL12-230	12	230	521	20.51	269	10.59	203	7.99	232	9.13	68	145.5	T14	E
GEL12-250	12	250	520	20.47	268	10.55	220	8.66	249	9.8	74	163.2	T14	E
