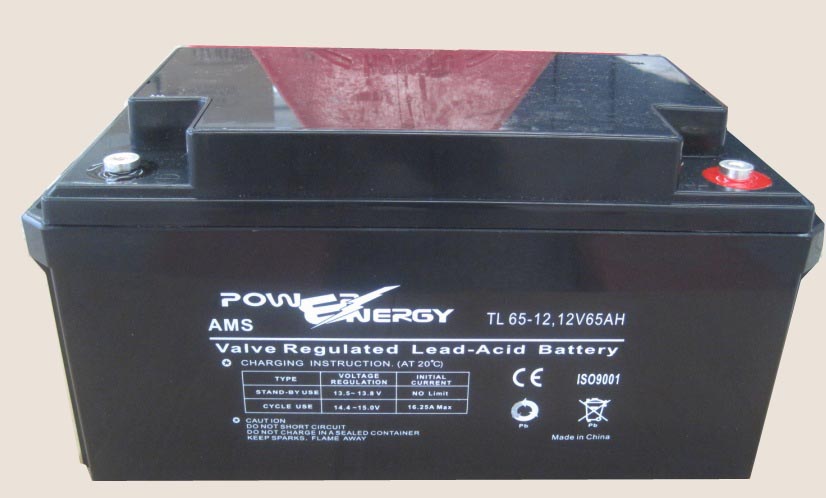

Deep Cycle Battery

DC (Deep Cycle Type) Series batteries are designed to have a large amount of stored current discharged between charging sessions, with very heavy non-porous battery plates to withstand repeated major discharging and charging cycles (deep cycles). Deep cycle batteries typically feature on thick plates with a high-density active material. Thick battery plates allow for reserve energy to be stored deep within the battery plate and released during slow discharge such as trolling or electronic instrument use. The high-density active material ensures its existence within the batteries' plate/grid structure longer, resisting the normal degradation found in cycling conditions. They are typically used where the battery is discharged to great extent and then recharged.

Code	Nominal Voltage (V)	Capacity (AH)	Dimension								Weight		Terminal		PDF
			Length		Width		Height		Total Height		Kg	Lb	Type	Posi- tion
			mm	in	mm	in	mm	in	mm	in
DC6-7.2	6	7.2	151	5.94	34	1.34	94	3.7	100	3.94	1.2	2.65	F1	C
DC6-7.5	6	7.5	151	5.94	34	1.34	94	3.70	100	3.94	1.3	2.87	F1	C
DC6-9	6	9	98	3.86	57	2.24	115	4.53	115	4.53	1.62	3.57	F1	B
DC6-12	6	12	151	5.94	50	1.97	94	3.7	100	3.94	1.89	4.17	F2	C
DC6-100	6	100	194	7.64	170	6.69	207	8.15	210	8.27	16	35.28	T19	A
DC6-120	6	120	194	7.64	170	6.69	207	8.15	210	8.27	17.5	38.59	T19	A
DC6-150	6	150	260	10.2	180	7.09	247	9.72	251	9.88	27	59.54	T19	A
DC6-180	6	180	306	12.05	168	6.61	222	8.74	226	8.9	28	61.74	T19	A
DC6-200	6	200	323	12.72	178	7.01	224	8.82	228	8.98	31	68.36	T19	A
DC6-225-B	6	225	243	9.57	188	7.40	275	10.83	275	10.83	32	70.56	T19	B
DC6-225-A	6	225	320	12.6	176	6.93	226	8.9	231	9.09	32	70.56	T19	A
DC12-5	12	5	90	3.54	70	2.76	101	3.98	107	4.21	1.7	3.75	F1	C
DC12-7.2	12	7.2	151	5.94	65	2.56	95	3.74	101	3.98	2.4	5.29	F1	F
DC12-7.5	12	7.5	151	5.94	65	2.56	95	3.74	101	3.98	2.55	5.62	F1	F
DC12-9	12	9	151	5.94	65	2.56	111	4.37	117	4.61	2.9	6.39	F2	F
DC12-12	12	12	151	5.94	98	3.86	95	3.74	101	3.98	4	8.82	F2	F
DC12-20	12	20	181	7.13	76	2.99	167	6.57	167	6.57	6.3	13.89	T5	D
DC12-24	12	24	175	6.89	166	6.54	125	4.92	125	4.92	8.5	18.74	T5	D
DC12-28	12	28	165	6.5	126	4.96	175	6.89	182	7.17	10	22.05	T9	D
DC12-33	12	33	195	7.68	130	5.12	159	6.26	183	7.2	11.3	24.92	T7	C

Code	Nominal Voltage (V)	Capacity (AH)	Dimension								Weight		Terminal		PDF
			Length		Width		Height		Total Height		Kg	Lb	Type	Posi- tion
			mm	in	mm	in	mm	in	mm	in
DC12-35	12	35	195	7.68	130	5.12	159	6.26	183	7.2	12.3	27.12	T7	C
DC12-40	12	40	197	7.76	165	6.5	170	6.69	170	6.69	14.3	31.53	T17	D
DC12-55	12	55	230	9.06	138	5.43	209	8.23	213	8.39	17	37.49	T17	C
DC12-60	12	60	260	10.24	170	6.69	221	8.70	221	8.70	21	46.31	T17	C
DC12-65	12	65	350	13.78	166	6.54	176	6.93	176	6.93	22.7	50.05	T10	C
DC12-75	12	75	258	10.16	168	6.61	208	8.19	212	8.35	23	50.72	T18	C
DC12-80	12	80	258	10.16	168	6.61	208	8.19	212	8.35	27	59.54	T18	C
DC12-90	12	90	305	12.01	168	6.61	208	8.19	212	8.35	28.9	63.72	T19	C
DC12-100	12	100	330	12.99	172	6.77	215	8.46	221	8.7	31	68.36	T19	C
DC12-120	12	120	406	15.98	174	6.85	208	8.19	233	9.17	37	81.59	T12	C
DC12-135	12	135	341	13.43	172	6.77	284	11.18	288	11.34	44	97.02	T19	C
DC12-150	12	150	485	19.09	172	6.77	240	9.45	240	9.45	46	101.43	T11	C
DC12-160	12	160	530	20.87	209	8.23	214	8.43	231	9.09	50	110.25	T14	E
DC12-180	12	180	525	20.67	243	9.57	220	8.66	245	9.65	54	119.1	T14	E
DC12-200	12	200	525	20.67	243	9.57	220	8.66	245	9.65	63	138.92	T14	E
DC12-230	12	230	521	20.51	269	10.59	203	7.99	232	9.13	66	145.53	T14	E
DC12-250	12	250	520	20.47	268	10.55	220	8.66	249	9.8	74	163.17	T14	E
